Laser Cleaning Machines South Africa - DMK Series

FactorySmart supplies the DMK Laser Cleaning Series to heavy industrial operations across South Africa - fabrication, automotive, aerospace, and mining. Three configurations are available: the DMK 200, DMK 300, and DMK 500, each powered by a pulsed nanosecond laser source matched to a different throughput requirement.

The system uses nitrogen or compressed air as an assist gas and requires minimal wear parts - no blast media, no chemical consumables. Running cost is a fraction of equivalent abrasive or chemical cleaning processes.

FactorySmart supplies the DMK Laser Cleaning Series to heavy industrial operations across South Africa - fabrication, automotive, aerospace, and mining. Three configurations are available: the DMK 200, DMK 300, and DMK 500, each powered by a pulsed nanosecond laser source matched to a different throughput requirement.

The system uses nitrogen or compressed air as an assist gas and requires minimal wear parts - no blast media, no chemical consumables. Running cost is a fraction of equivalent abrasive or chemical cleaning processes.

When Surface Preparation Becomes a Bottleneck

Every downstream process - welding, coating, NDT inspection, precision machining - depends on a clean, uncontaminated surface. Rust, mill scale, residual paint, and processing lubricants cause weld defects, coating delamination, and rejected inspections.

Abrasive blasting embeds media in porous substrates, is incompatible with tight tolerances, and requires blast booth infrastructure. Chemical stripping generates regulated waste and adds rinse steps. Neither scales well for mixed substrate environments or maintenance operations requiring portability.

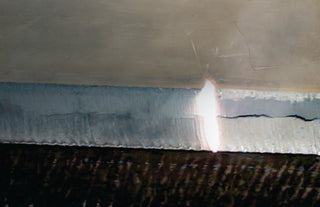

The DMK generates very short laser pulses in the nanosecond range. Concentrating energy into such a short time span produces extremely high peak power without continuous heat input. The contaminant layer — rust, oxide, paint, scale — absorbs this energy at a higher rate than the base substrate beneath it, vaporising without transmitting damaging heat to the parent material.

The beam is delivered through a 2D galvanometric scanner. The DMK 200 and 300 use a standard 2D scanner; the DMK 500 uses a high-speed 2D scanner with up to 116 mm deflection and a distance sensor for automatic focal control on curved or uneven surfaces. Nitrogen or compressed air assist gas is used during operation to clear ablated material from the cleaning zone.

No Substrate Deformation

Non-contact, selective energy absorption means the DMK is safe on thin-wall sections, precision-machined surfaces, and heat-sensitive alloys — substrates where abrasive blasting is damaging or dimensionally unacceptable.

Significantly Lower Running Cost

Laser cleaning requires nitrogen or compressed air as an assist gas and minimal wear parts — no blast media, no solvents, no chemical disposal. Compared to abrasive blasting or chemical stripping, the reduction in consumable, waste management, and compliance costs is substantial. All three DMK models are air-cooled, with no water-cooling infrastructure required.

Controlled, Repeatable Output

Scan parameters are set digitally and reproduced across operators and shifts — compatible with ISO 9001 quality systems and surface preparation standards including AWS D1.1, EN 1011, and ISO 8501.

Portable — Positioned at the Work

All models are self-contained on wheeled chassis. The DMK 200 at 25 kg suits precision workshop applications. The DMK 300 and 500 handle mid-range and high-volume requirements while remaining mobile enough to bring to the workpiece.

Class 4 Laser — Safety Requirements

All DMK models are Class 4 lasers under IEC 60825-1. Direct beam, specular reflection, and close-range diffuse reflection can cause irreversible eye and skin damage. Laser safety eyewear rated for the operating wavelength is mandatory. FactorySmart provides safety guidance at commissioning.

Heavy Fabrication and Structural Steel

Pre-weld surface preparation requires removal of mill scale, rust, and coating from the joint zone before welding. The DMK is applied directly on the fabrication floor — no blast booth, no media embedment, no contamination of adjacent surfaces. Compliant with ISO 5817 and AWS D1.1 pre-weld cleanliness requirements.

Automotive and Transport

For sub-assemblies, prototypes, and maintenance rework, laser cleaning replaces chemical degreasing without rinse cycles or chemical residue. The DMK 200 suits precision component cleaning; the DMK 500 addresses higher-volume rust removal from frame members and chassis rails.

Aerospace and Defence

The pulsed nanosecond process is parameter-controlled and traceable — qualifiable within AS9100 and NADCAP-accredited manufacturing plans. For MRO, the portable DMK enables in-situ surface restoration without component removal, meeting MIL-spec traceability requirements.

Mining and Resources

Persistent corrosion on structural members, pipework, and pressure vessels in mining environments is addressed directly by the DMK's wheeled chassis — operators work on installed plant without transporting components. Pre-NDT surface preparation (magnetic particle, dye penetrant) is a direct application — no media embedment risk.

General Industrial Maintenance

Tooling maintenance, mould cleaning, conveyor component restoration, and precision part degreasing — tasks currently handled by wire brushing or grinding — are addressed by the DMK 200 in workshop environments, with the DMK 300 and 500 covering higher-volume maintenance requirements.

Bring us your cleaning problem. We will identify the right configuration and assist gas setup for your substrate, contamination type, and production volume.

FactorySmart supports production managers, maintenance engineers, and procurement leads across South African heavy industry. Based in Kempton Park, Gauteng.
