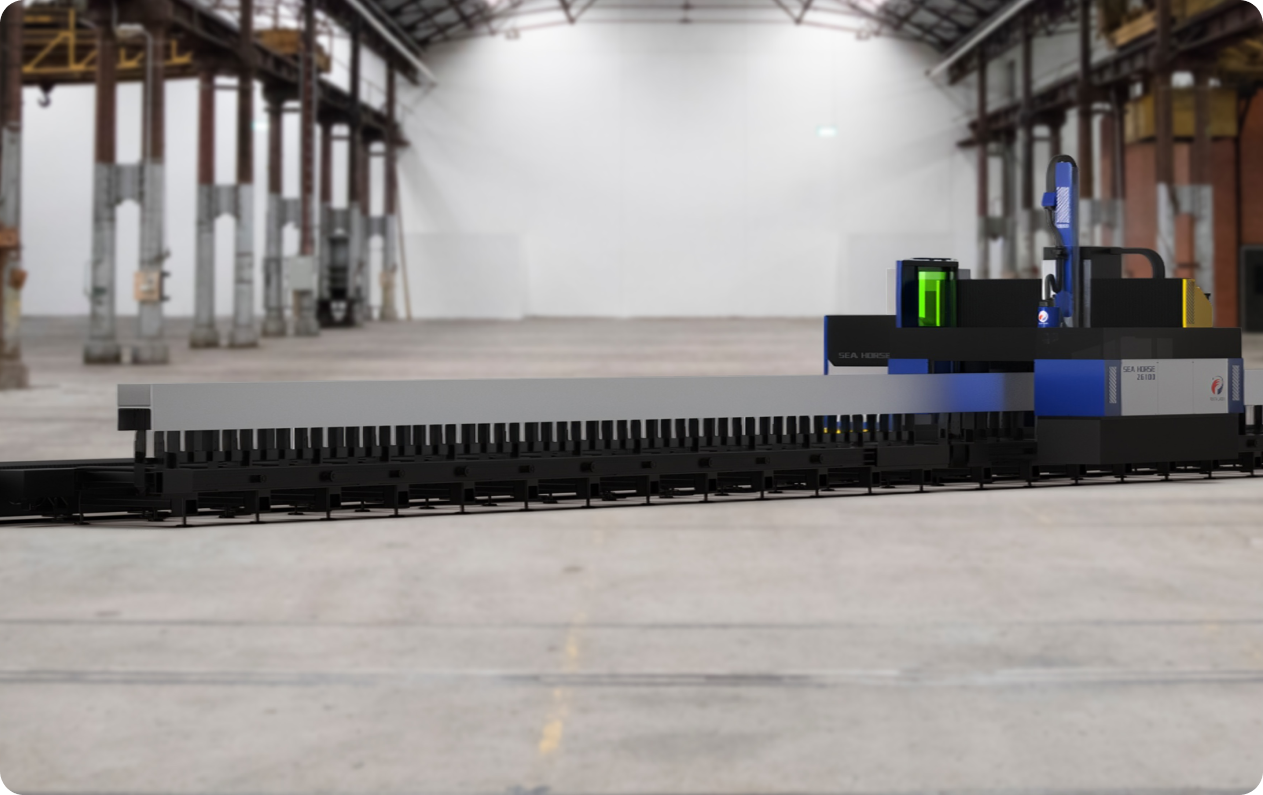

Penta Seahorse 2 Series

Large-format heavy-duty laser cutting machine

The Seahorse 2 is a high-performance fibre laser cutting machine from Penta, built for precision cutting of large metal sheets and profiles. With options up to 20kW, it combines robust construction with high-speed, high-accuracy output for demanding industrial applications.

Ideal for flat sheet and structural profile cutting, the Seahorse 2 is designed to handle thick materials with clean, consistent results. It supports advanced cutting features such as bevelling, hole cutting, scribing, and tenon joints – making it a versatile solution for high-throughput production environments.

USE CASES
  • Structural steel and profile fabrication
  • Mining and heavy industrial parts manufacturing
  • Energy infrastructure components
  • Multi-process sheet and profile cutting operations
KEY TECHNICAL SPECIFICATIONS
  • Laser power options: 12kW or 20kW Maxphotonics fibre laser
  • I-Beam, channel, angle: 13000mm x 1500mm x 600mm
  • Cutting table size: Up to 26,000 × 2,500mm
  • Max cutting thickness (mild steel with O₂): Up to 80mm
  • Max cutting thickness (stainless steel with N₂): Up to 100mm
  • CNC system: Z32 control (El.En Group, Italy)
  • Cutting head: Precitec with external beam path
  • Software: LANTEK CAD/CAM automation
  • Motion system: INOVANCE servo motors and drivers
  • Cutting capabilities: Bevel cutting, round/square/waist holes, tenon-style joints
  • Optional extras: I-Beam cutting table, dust extraction, high-pressure air compressor
