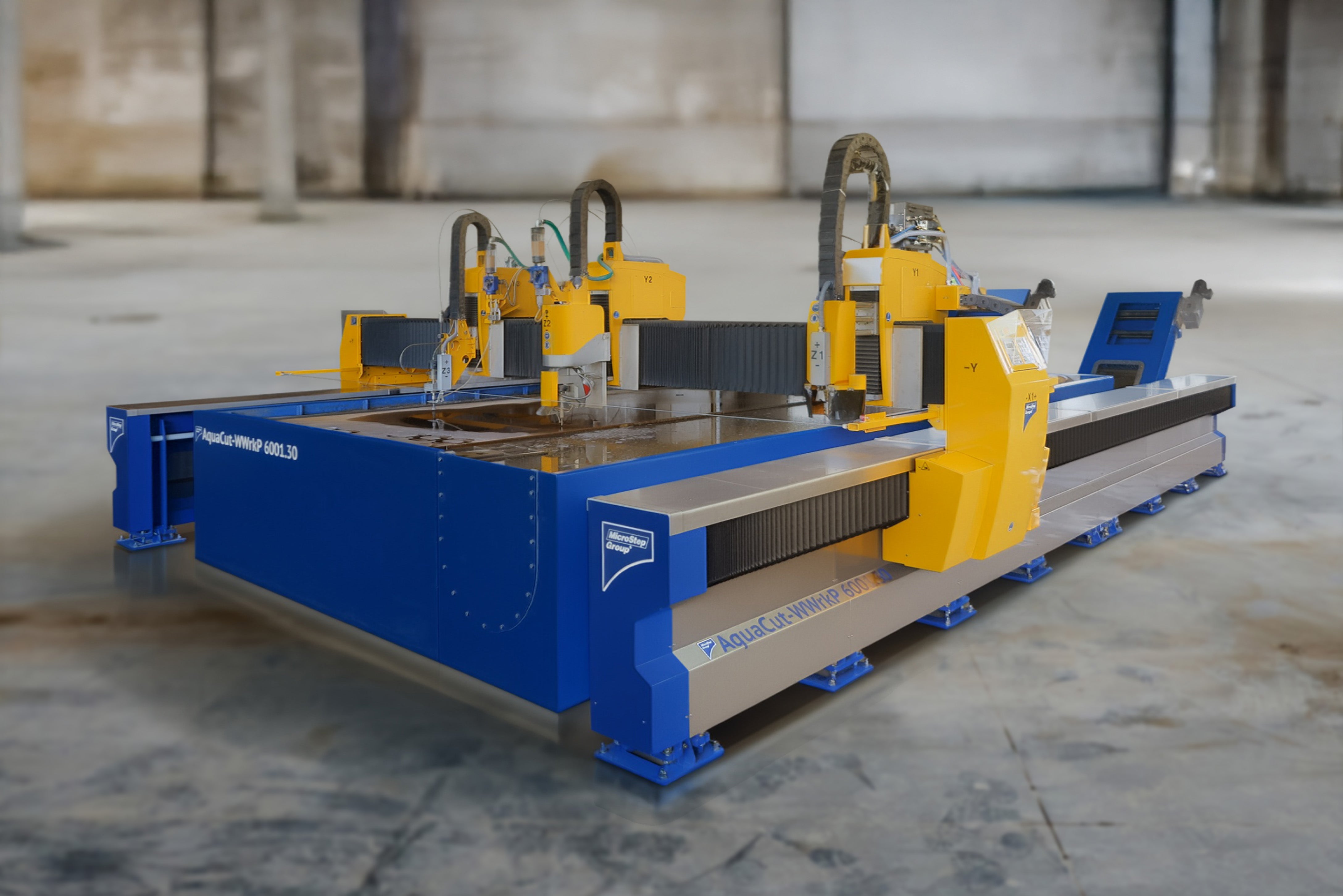

MicroStep AquaCut

Precision waterjet cutting system with optional plasma head

The AquaCut is a versatile CNC cutting machine designed for high-precision processing of a wide range of materials – including those sensitive to heat or mechanical stress. It uses pure water or abrasive waterjet cutting and can be optionally combined with a plasma torch or drilling/tapping unit for hybrid functionality.

AquaCut is ideal for clean, cold cutting of metals, stone, glass, ceramics, plastics, and composite materials. It ensures zero heat-affected zones and no deformation, making it suitable for intricate and delicate work where edge quality matters.

USE CASES
  • Aerospace and automotive prototypes
  • Stone, marble, and architectural panels
  • Stainless steel and aluminum components
  • Glass, ceramics, wood, foam, and sandwich materials
  • Pre-fab and specialty cutting where thermal distortion must be avoided
KEY TECHNICAL SPECIFICATIONS
  • Cutting process: Pure waterjet or abrasive waterjet (optional plasma or drilling unit)
  • Max material thickness: Up to 200mm (material dependent)
  • Positioning speed: Up to 56,000mm/min
  • Accuracy: ±0.05mm per meter
  • Cutting area: Modular/customisable
  • Height control: Automatic IHS with collision protection
  • CNC control: PC-based iMSNC® with touchscreen interface
  • Manual control unit: Integrated on gantry for real-time adjustments
  • Guides: Stainless steel linear guides with bellows covers
  • Drive system: Dual-drive gantry with helical racks and backlash elimination
  • Motors: Panasonic AC digital servo motors
  • Energy source: 380V, 50Hz, 16A and 6 bar compressed air
  • Environmental safety: Closed-loop water system and sludge removal options
MicroStep AquaCut
MicroStep AquaCut
