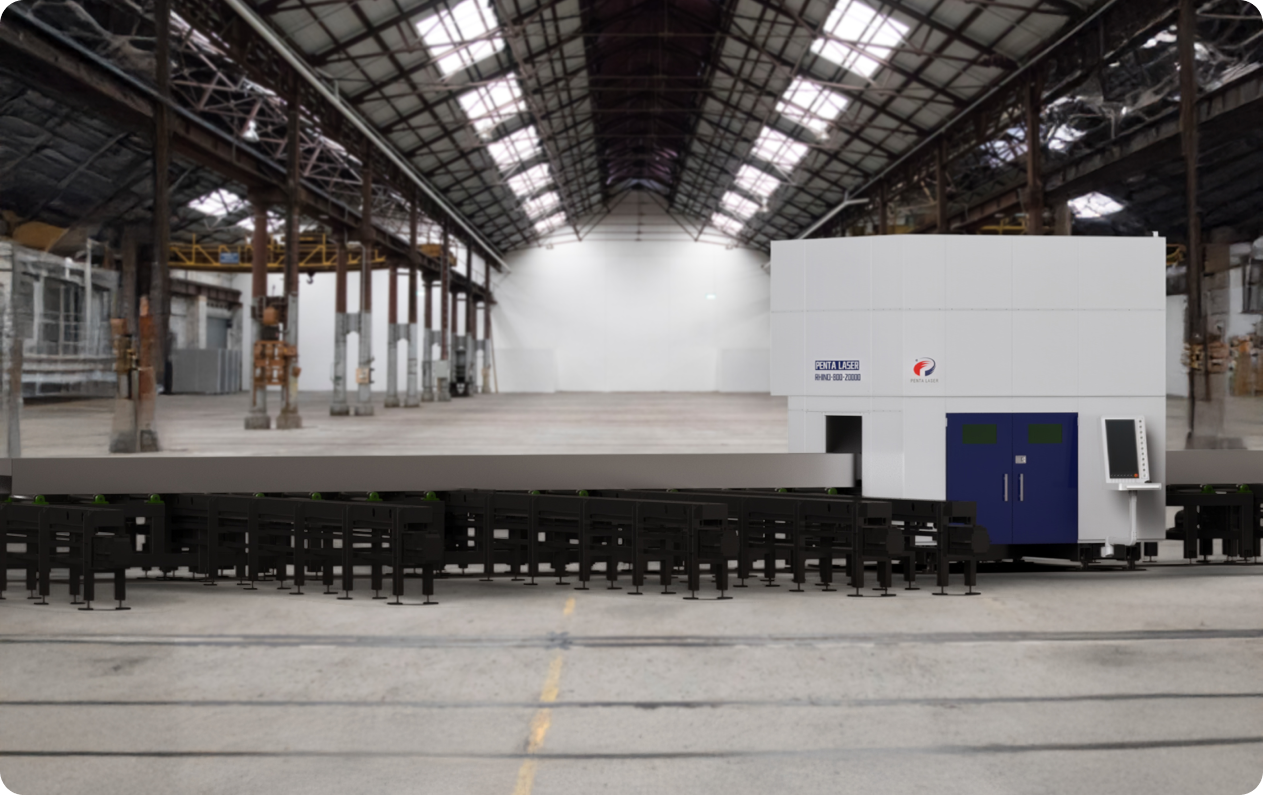

Penta Rhino HP800X400 BV

High-power H-beam laser cutting system for structural steel profiles

The Penta Rhino HP800 X 400 BV is a 20kW fibre laser cutting system specifically engineered for processing structural steel profiles such as H-beams, U-channels, angle iron, and more. Built with robust automation, full enclosure, and multi-axis cutting capabilities, the Rhino delivers high-speed, high-precision results for industrial steel fabrication.

Designed to handle large, heavy profiles with complex geometries, the Rhino enables bevel cutting, tenon joints, hole creation, and intelligent scribing – all in a single setup. Its fully enclosed processing area, advanced software, and automated material handling make it ideal for high-throughput manufacturing and steel service operations.

USE CASES

H- and C-beam cutting for structural steel
Profile-based fabrication in heavy industries
Precision bevel and tenon cutting for interlocking components
Automated steel processing lines
Bridge, building, and large-scale infrastructure components

KEY TECHNICAL SPECIFICATIONS

Laser power: 12kW Maxphotonics (20kW optional)

Cutting capacity:

Mild steel: up to 30mm (bevel up to 20mm)
Stainless steel: up to 20mm

Profile size range:

H-beams: 100×100mm to 800×400mm
U-steel: 10#–40# (100–400mm)
Equal angles: 100x100–250×250mm
Unequal angles: 100×30–200×125mm

Multi-axis cutting head:

B-axis rotation: ±90°
C-axis rotation: ±45°

X1/Y1/Z1 travel: 1250/650/350mm
Profile length: Up to 12m (loading/unloading)
Accuracy: ±0.05mm/m; repeatability ±0.03mm
Cutting software: LANTEK CAD/CAM with auto-nesting
CNC: Z32 Control System (El.En Group, Italy)
Servo system: Inovance
Automation: Feeding push claw, clamping system, unloading conveyors
Safety: Full enclosure with Class 4 laser protection and fume extraction compatibility
