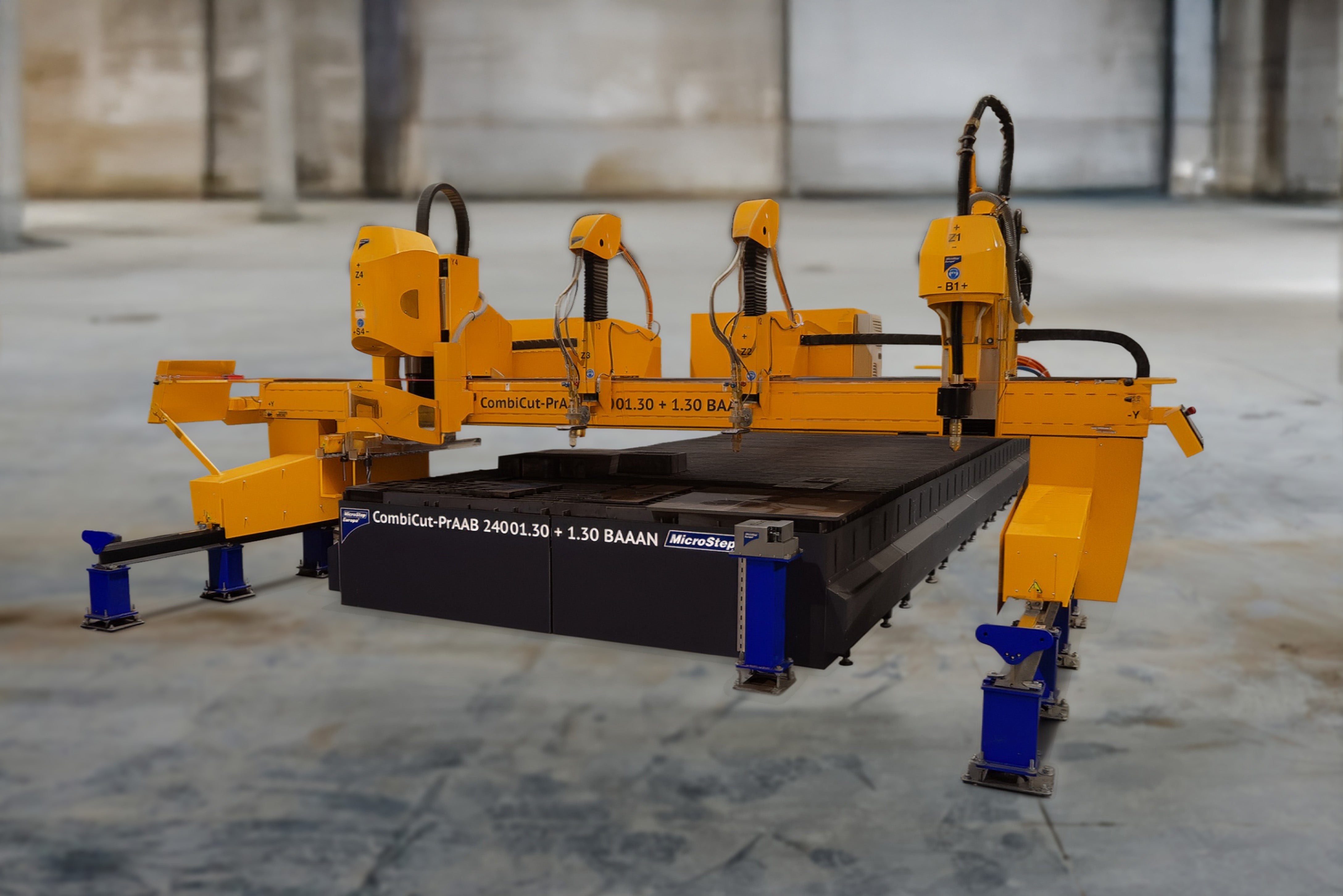

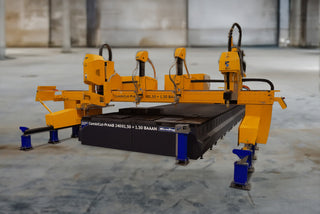

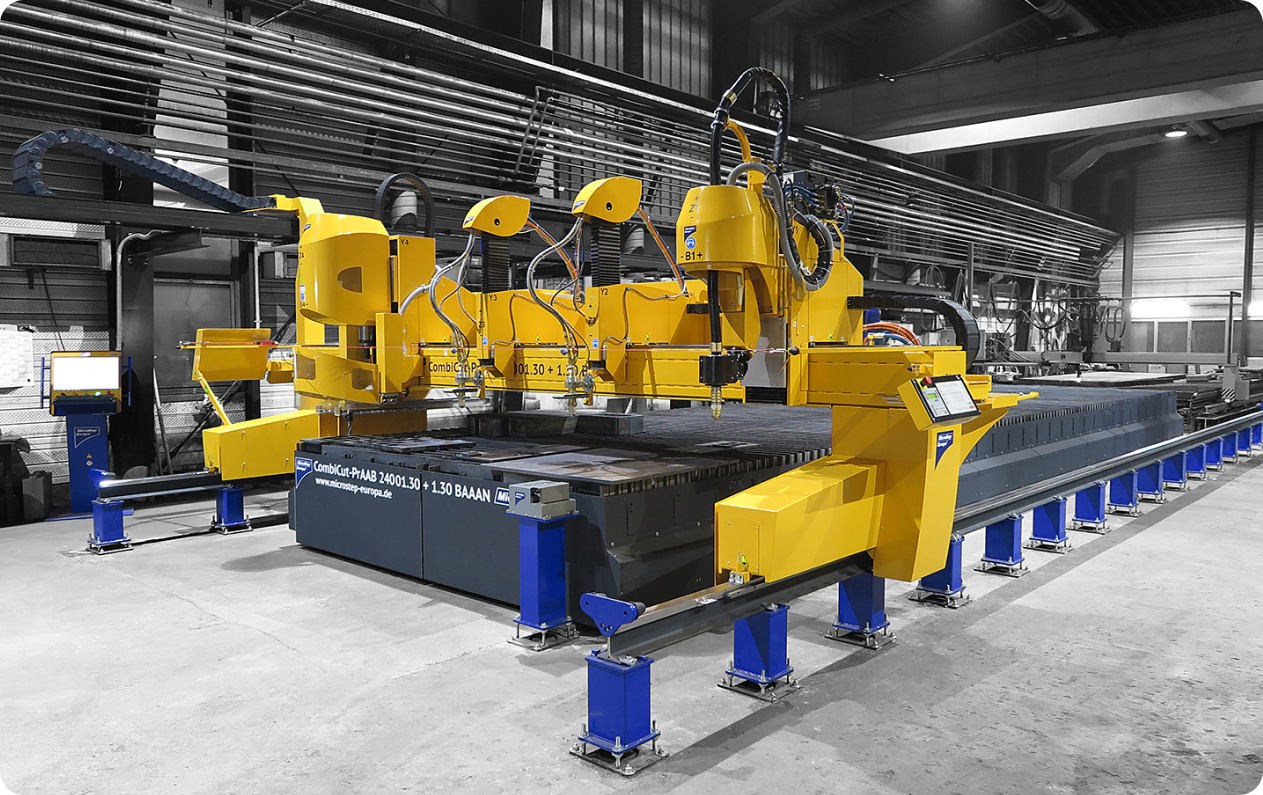

MicroStep CombiCut

Multi-process cutting system for plasma, oxyfuel, flame-cutting and waterjet

The CombiCut is a robust, high-precision CNC cutting machine engineered for demanding industrial use. It combines plasma, oxyfuel, and optional waterjet cutting in a single system – ideal for high-mix, high-precision, multi-shift operations.

Perfect for manufacturers who need a flexible, high-throughput solution for cutting various materials and thicknesses. The CombiCut excels in complex, heavy-duty applications where multiple processes, angles, or cutting heads are required – saving space, time, and equipment cost.

USE CASES

Mixed-material and multi-process production
Structural steel and heavy fabrication
Pipe and dome processing
Custom fabrication shops
Multi-shift industrial production environments

KEY TECHNICAL SPECIFICATIONS

Cutting processes: Plasma, oxyfuel, optional waterjet
Max oxyfuel thickness: Up to 300mm
Plasma thickness: Varies by source
Simultaneous XY speed: Up to 50m/min (plasma), 36m/min (oxyfuel)
Positioning speed: Up to 30m/min (X axis)
Bevel cutting: Plasma rotator or rotary oxyfuel triple torches
Drilling: Up to Ø 40mm
Marking options: Inkjet and micropercussion
Height control: Plasma arc voltage-based with adaptive algorithms
Accuracy: ISO 9013 standard; repeatability ±0.05mm/m
Drive system: Dual-drive gantry with backlash-free helical racks and wear-resistant belts
CNC Control: PC-based iMSNC® system with touchscreen interface
Manual control: LCD console on gantry
Safety: Sectional under-table fume extraction and cable duct protection
